Setting Up SCIM 2.0 User Deprovisioning with Okta

What is User Deprovisioning with SCIM?

SCIM is an open standard that automates user management from an IDP and a SaaS service provider, in this case, Loopio. With our SCIM implementation, you are able to automatically deprovision / disable an existing Loopio user directly within the IDP.

Prerequisites

• You currently use OKTA for your user management needs
• You have SAML SSO enabled with Loopio. If you are already using SSO, steps 1-4 of Configuring SCIM User Deprovisioning in Okta below may already be completed
• You have generated a SCIM token created through the Loopio Admin Integrations page. To learn more about generating SCIM tokens see our article: How Do I Generate a Token for SCIM User Deprovisioning?

Configuring SCIM User Deprovisioning in Okta

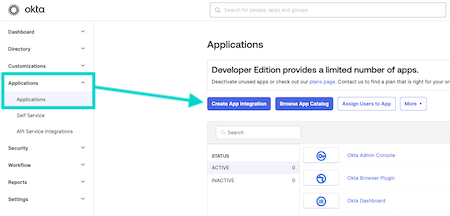

1. In Okta navigate to Applications > Applications and select Create App Integration

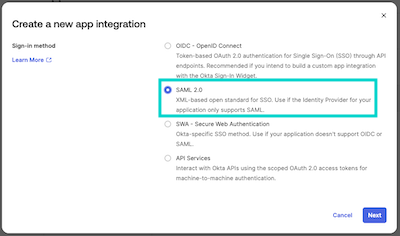

2. Select SAML 2.0 as the sign-in method and click Next


3. Fill in the details for your application on the General Settings page and click Next
4. Navigate to the Configure SAML page, then under ‘SAML Settings’ fill in the section with the values from the table below:


   Single sign-on URL	https://LOOPIO_URL/sso_saml/module.php/saml/sp/saml2-acs.php/loopio-sp
   SP Entity ID	loopio-sp
   Default RelayState	https://LOOPIO_URL/home
   NameID Format	Unspecified
   Application username	Email
   Update application username on	Create and update





   Note: Replace ‘LOOPIO_URL’ with the domain of your Loopio instance. Learn more: What is my Company's Loopio URL?

5. Fill out the Feedback section and click Finish

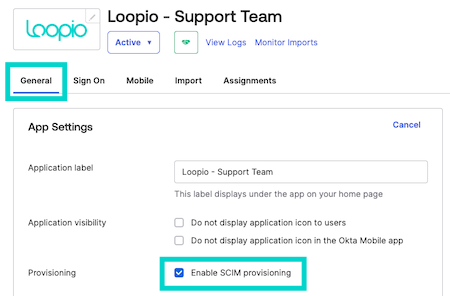

6. After you have created your application, on your application’s details page navigate to General and check Enable SCIM provisioning then click Save

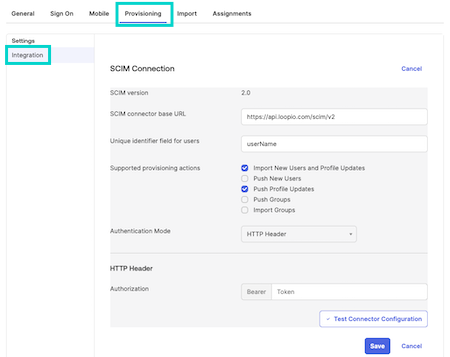

7. On your application’s details page navigate to Provisioning > Integration and fill in the form with the values in the table below.  Click Save.



   SCIM connector base URL	https://api.loopio.com/scim/v2
   Unique Identifier field for users	userName
   Supported provisioning actions (checked options)	Import New Users and Profile Updates Push Profile Updates
   Authentication Mode	HTTP Header
   Authorization	Your unique Bearer Token





   Tip: If you are testing SCIM in a Loopio Sandbox (INT01) environment, use the SCIM connector base URL https://api.int01.loopio.com/scim/v2



   Note: The HTTP Header Bearer token will be the SCIM token created through the Loopio Admin Integrations page. To learn more about generating SCIM tokens see our article: How Do I Generate a Token for SCIM User Deprovisioning?

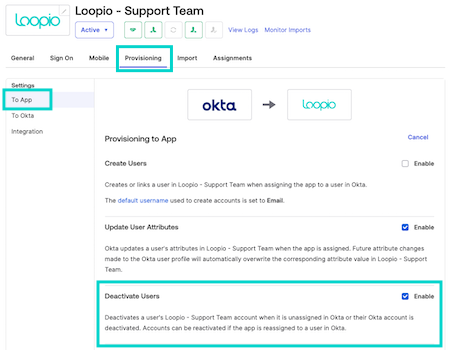

8. On your application’s details page navigate to Provisioning > To App and enable Deactivate Users. This will simultaneously disable users in Loopio when they are unassigned from your application in Okta or when their account is deactivated in Okta. Click Save.



   Tip: You can optionally enable Update User Attributes to synchronize updating a user’s attributes in Loopio when they are modified in Okta. You can also choose to use SCIM to manage User provisioning, read more: Setting Up SCIM 2.0 User Provisioning with Okta

Importing and Assigning Users in Okta

1. On your application’s details page navigate to Import and click Import Now. You should now see a list of your Loopio users on the page

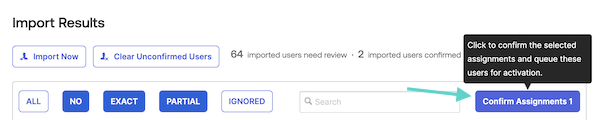

2. After your users are imported, confirm their assignment to your application by checking the checkbox beside their name. You can do this individually on each user’s import card or in bulk by checking the checkbox next to Okta User Assignment. After you have made your selections click Confirm Assignments

   Note that if there is no existing match of an imported Loopio user to a user in your Okta directory, a new Okta user will be assigned to the Loopio user when they are imported. The new Okta user will have a status of Staged and can be activated by finding the user in Directory > People and clicking Activate on that user.



   Note: If you do not see Loopio users appearing above, ensure that your user’s Okta username matches their Loopio email address, as this is what is used to modify the user in Loopio.

3. Your users have now been assigned to your application and you can view them by navigating to Assignments and clicking on People in the filters list

Unassigning a User in Okta

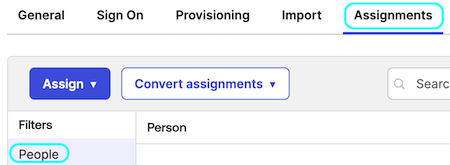

1. On your application’s details page navigate to Assignments. Ensure the filter is set to People

2. Find the person you want to unassign, and click the X next to their name. This will unassign them from your application in Okta and simultaneously disable their account in Loopio



   Tip: If the Assignment type is Group, you will need to remove the user from the relevant group that is assigned Loopio access. [External - Okta reference] Remove people from a group

Reassigning a User in Okta

1. On your application’s details page navigate to Assignments

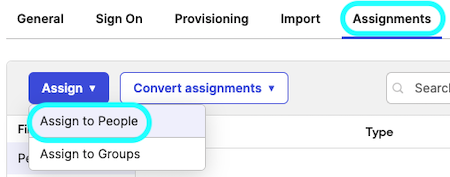

2. Click Assign to open the dropdown and then Assign to People


3. Find the user you want to assign and click Assign next to their name, then Save and Go Back.
4. Repeat this for all the users you want to assign and then click Done. The user will now be reassigned to your application in Okta and reenabled in Loopio
