Setting Up SCIM 2.0 User Provisioning with Okta

What is User Provisioning with SCIM?

SCIM is an open standard that automates user management from an IDP and a SaaS service provider, in this case, Loopio. With our SCIM implementation, you are able to automatically provision / create a Loopio user directly within the IDP.

Prerequisites

• You currently use OKTA for your user management needs
• You have SAML SSO enabled with Loopio. If you are already using SSO, steps 1-4 of Configuring SCIM User Provisioning in Okta below may already be completed
• You have generated a SCIM token created through the Loopio Admin Integrations page. To learn more about generating SCIM tokens see our article: How Do I Generate a Token for SCIM User Deprovisioning?

Configuring SCIM User Provisioning in Okta

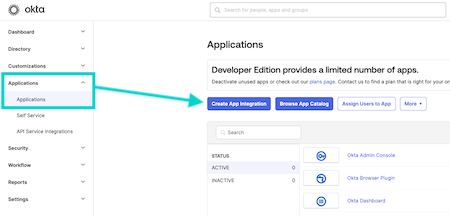

1. In Okta navigate to Applications > Applications and select Create App Integration

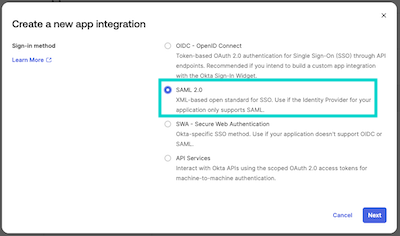

2. Select SAML 2.0 as the sign-in method and click Next


3. Fill in the details for your application on the General Settings page and click Next
4. Navigate to the Configure SAML page, then under ‘SAML Settings’ fill in the section with the values from the table below:


   Single sign-on URL	https://UNIQUE_LOOPIO_DOMAIN/sso_saml/module.php/saml/sp/saml2-acs.php/loopio-sp
   SP Entity ID	loopio-sp
   Default RelayState	https://UNIQUE_LOOPIO_DOMAIN/home
   NameID Format	Unspecified
   Application username	Email
   Update application username on	Create and update





   Note: Replace ‘UNIQUE_LOOPIO_DOMAIN’ with the domain of your Loopio instance. Learn more: What is my Company's Loopio URL?

5. Fill out the Feedback section and click Finish

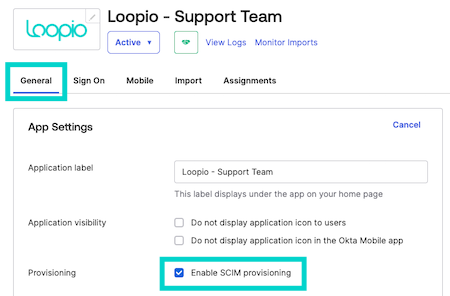

6. After you have created your application, on your application’s details page navigate to General and check Enable SCIM provisioning then click Save

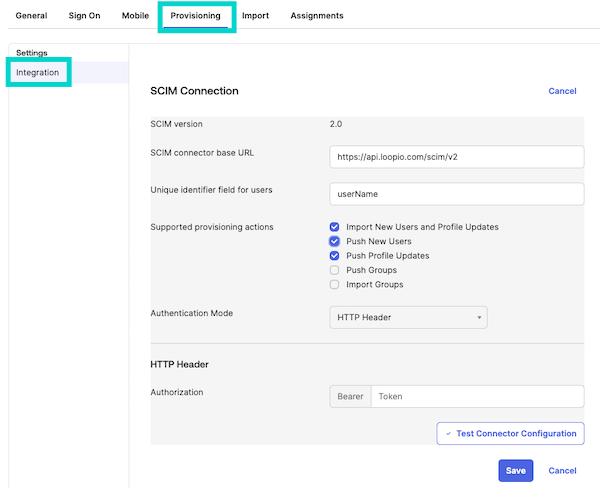

7. On your application’s details page navigate to Provisioning > Integration and fill in the form with the values in the table below, then click Save



   SCIM connector base URL	https://api.loopio.com/scim/v2
   Unique Identifier field for users	userName
   Supported provisioning actions (checked options)	Import New Users and Profile Updates Push New Users Push Profile Updates
   Authentication Mode	HTTP Header
   Authorization	Your unique Bearer Token





   Tip: If you are testing SCIM in a Loopio Sandbox (INT01) environment, use the SCIM connector base URL https://api.int01.loopio.com/scim/v2



   Note: The HTTP Header Bearer token will be the SCIM token created through the Loopio Admin Integrations page. To learn more about generating SCIM tokens see our article: How Do I Generate a Token for SCIM User Deprovisioning?

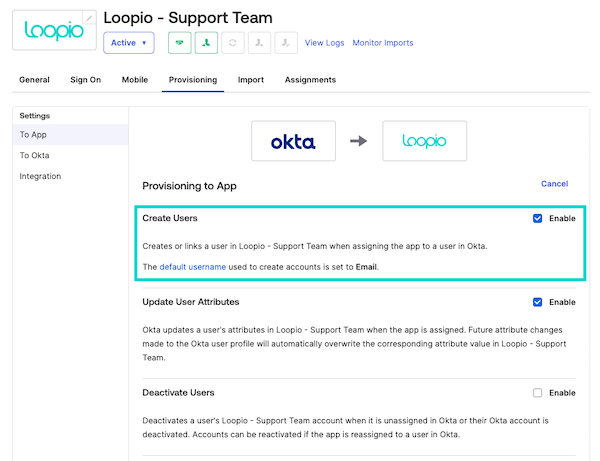

8. On your application’s details page navigate to Provisioning > To App and enable Create Users



   Tip: You can optionally enable Update User Attributes to synchronize updating a user’s attributes in Loopio when they are modified in Okta. You can also choose to use SCIM to manage User deprovisioning, read more: Setting Up SCIM 2.0 User Deprovisioning with Okta

9. Click Save

Adding and Mapping the Roles Attribute

If you do not already have the roles attribute set up, you will need to configure that following the steps below, or by configuring a Group Attribute.

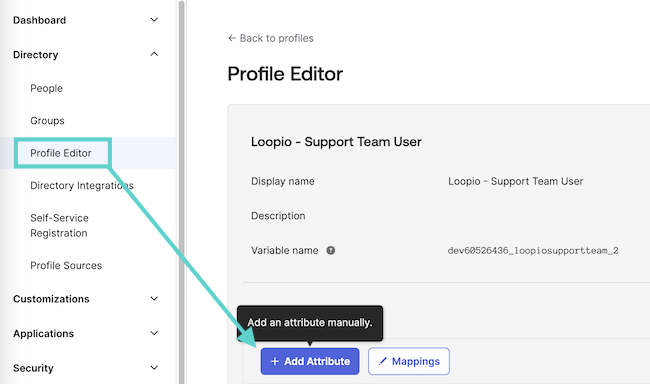

1. Go to the Okta Profile Editor for the Loopio App you created
2. Click on Add Attribute


   Tip: Copy the "Variable Name" from your app's Profile Editor screen before clicking Add Attribute

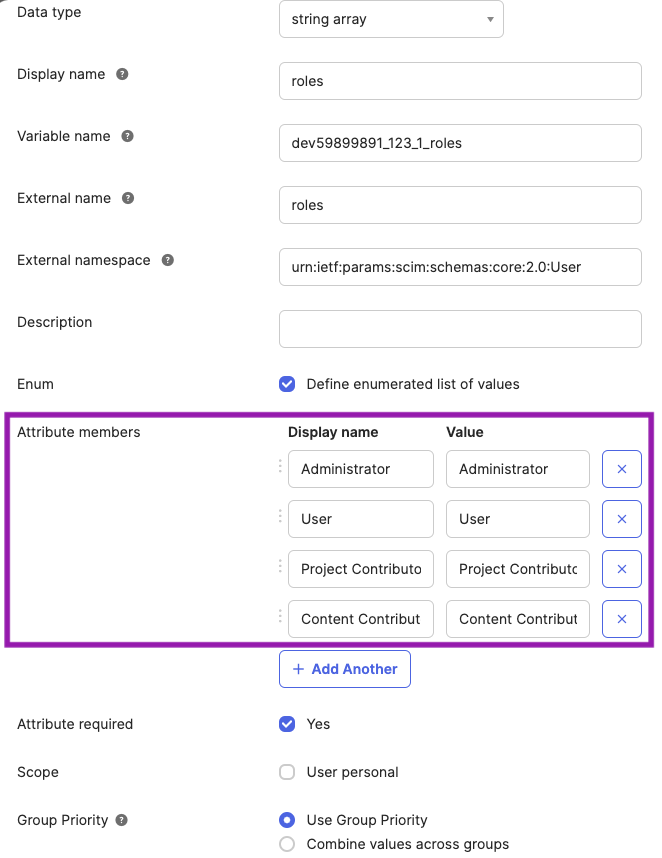

3. Add an attribute with the values in the table below



   Data Type	String Array
   Display Name	roles
   Variable Name	Append _roles to the variable name you copied from your Loopio app
   External Name	roles
   External Namespace	Must be exactly urn:ietf:params:scim:schemas:core:2.0:User
   Group Priority	Use Group Priority

   If prompted for User Permissions, select "Read Only"


4. Return to the Loopio app you created and select Provisioning > To App
5. Enable “Update User Attributes” in Provisioning Settings for the SCIM app if this has not been done already
6. Scroll down and click Show Unmapped Attributes

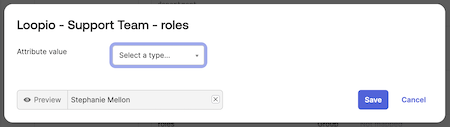

7. Click the edit (pencil) icon beside the roles Attribute, and map the Attribute by linking it to an existing Attribute or giving a value, then click Save
